INVIROX ULTRA K9 REMOTE - IP65 WATERPROOF

Take Your Dog Training Sessions To The Next Level.



Please read user manual carefully before use

• Do not use this product on an aggressive dogs.

• If you are not sure whether this product is appropriate for your dog - Kindly advise a professional dog trainer. Super-important!

Safety during on-leash training

It is vitally important that you and your dog remain safe while learning during on-leash training. Your dog should be on a strong leash, long enough for him to attempt to chase an object, but short enough for him not to reach a road or other unsafe area. You must also be physically strong enough to restrain your dog when he tries to chase.

Risk of skin damage

Please read and follow the instructions in this manual. Proper fit of the collar is important. A collar worn for too long or made too tight on the pet's neck may cause skin damage. Ranging from redness to pressure ulcers; this condition is commonly known as bed sores.

• Avoid leaving the collar on the dog for more than 12 hours per day.
• When possible re-position the collar on the pet's neck every 1 to 2 hours.
• Check the fit to prevent excessive pressure; follow the instructions in this manual.
• Never connect a leash to the electronic collar; it will cause excessive pressure on the contacts.
• When using a separate collar for a leash, don't put pressure on the electronic collar.
• Wash the dog's neck area and the contacts of the collar weekly with a damp cloth.

• Examine the contact area on daily basis to check your dog's skin is remains with no sours or rash signs due to the new collar.

• If a sour or rash is found- Discontinue use of the collar until the skin is cured.

These steps will help keep your dog safe & comfortable with the new collar. Millions of dogs owners using stainless steel contacts on their dog - with no skin damage. Although, some dogs have sensitive skin. Therefore as a careful dog owner its our duty to double check on the collar contact area on the dog's skin.

You may find after 1-2 weeks that your dog is very tolerant to the collar. If so, you can be rest assured to put the collar with ease on your dog and make those precautions checks from time to time- To avoid redness or sours on your dog's skin. If any of those is found, discontinue the use of the collar until the skin is completely healed.

Package includes:

How the INVIROX System Works

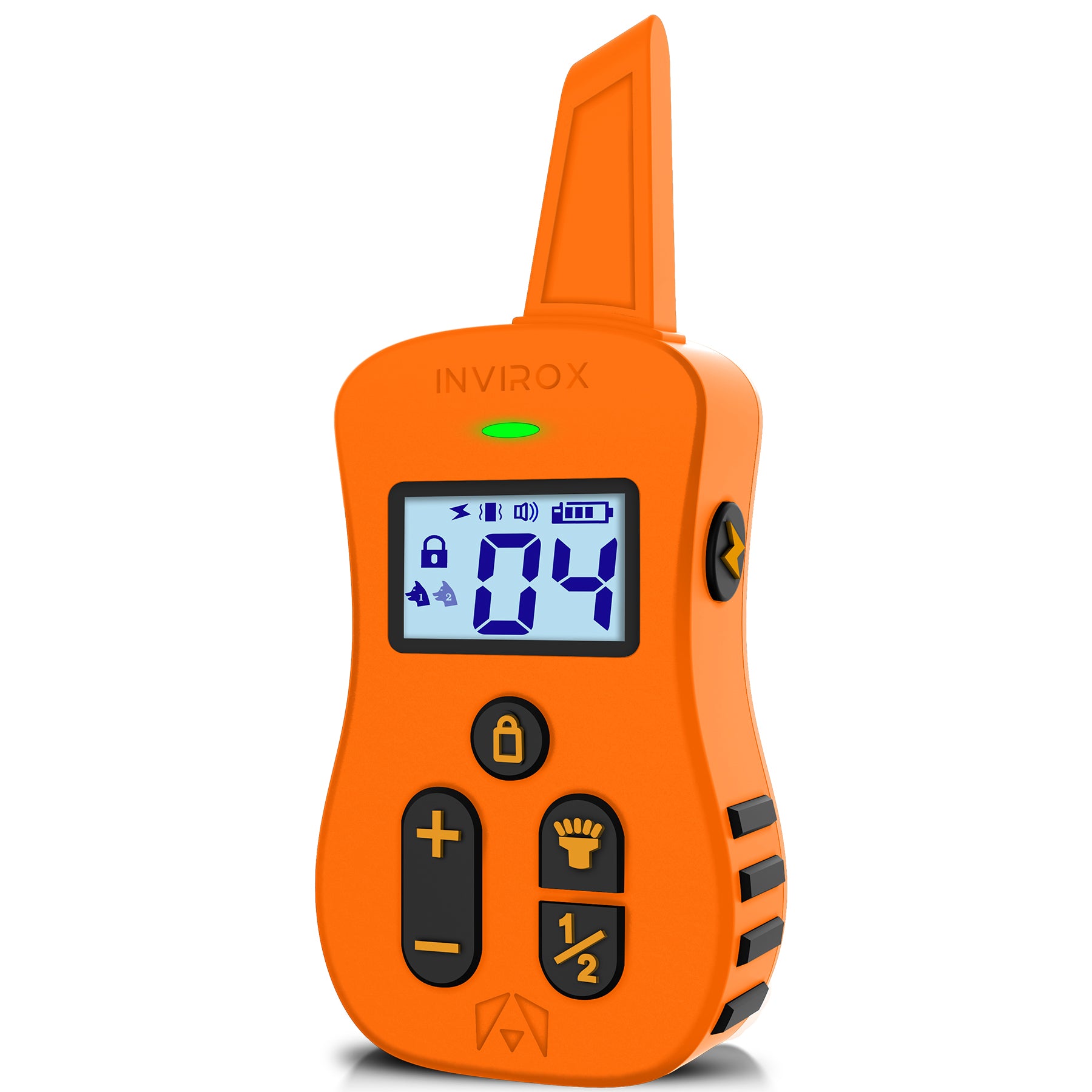

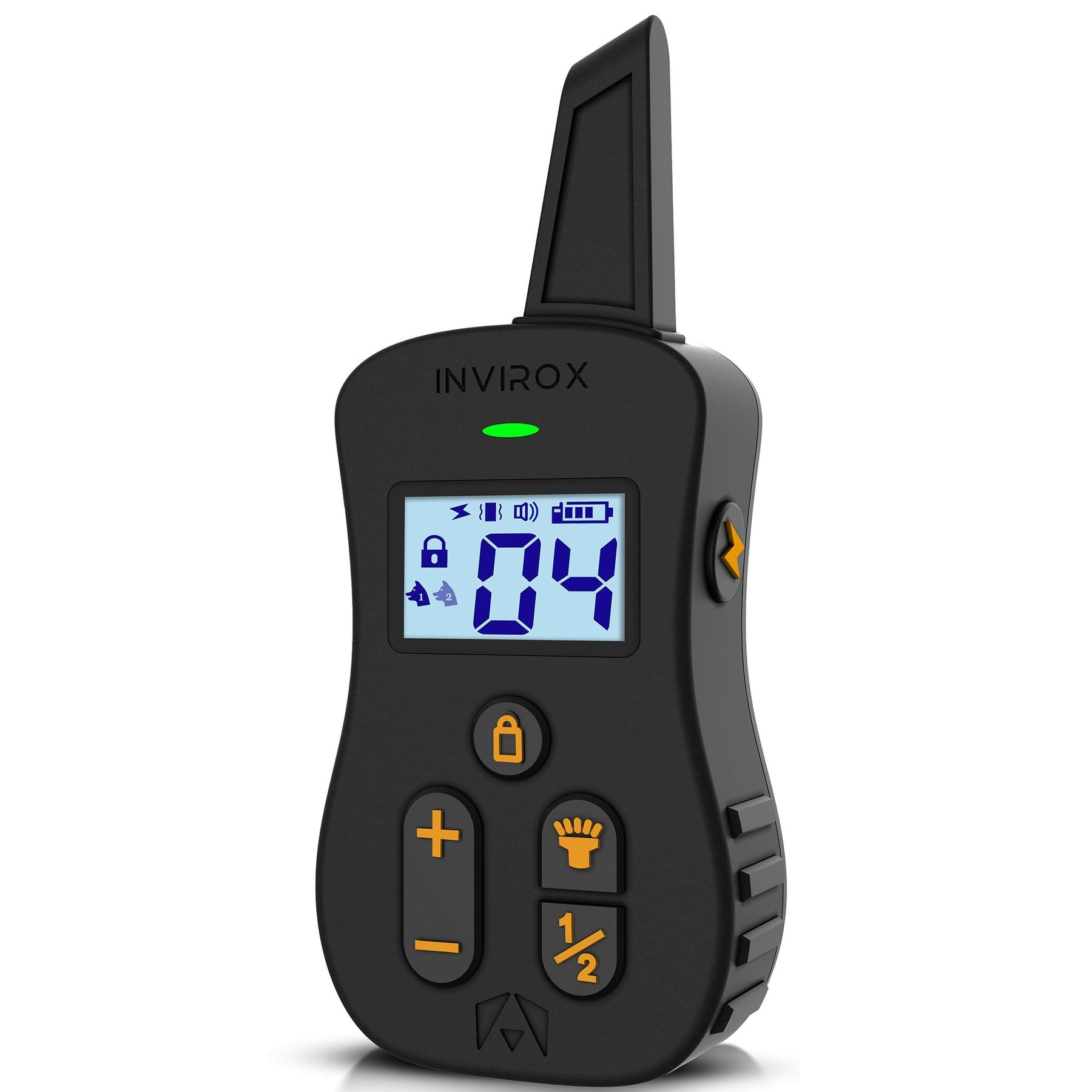

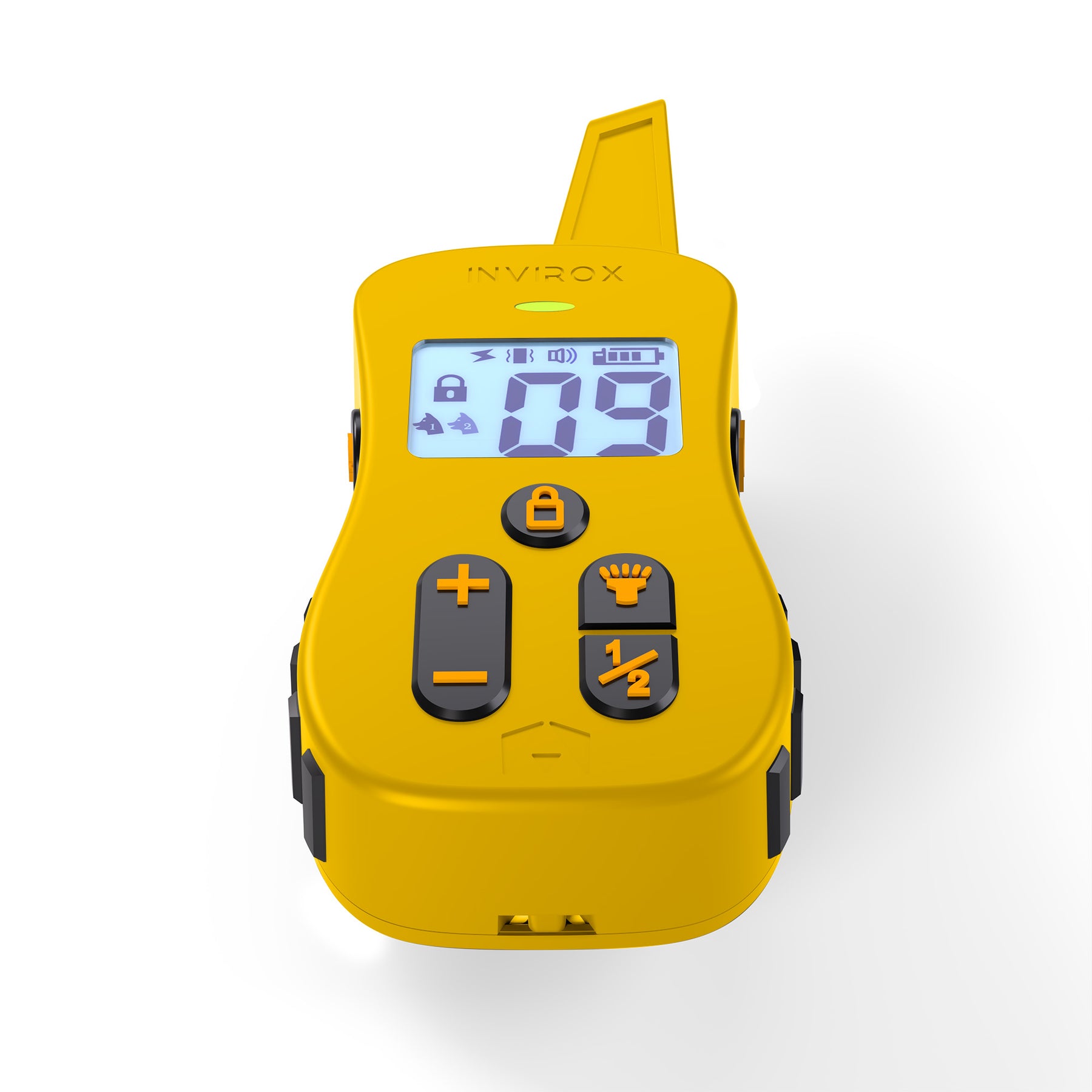

The Remote Training Collar is easy to use with an advanced digital display LED screen that tells you exactly what level of stimulation you are using. The Remote Training Collar assists you in controlling your dog especially when off-leash. At the push of a button, your Remote Transmitter sends a signal activating your dog's Receiver Collar. Your dog will receive a safe but annoying stimulation. He'll quickly learn the association between his behavior and your correction in no time. The Remote Training Collar has proven safe, comfortable, and effective for both small and large dog breeds at least 6 months of age and over 8 lbs. Using the Remote Trainer consistently and correctly, any basic obedience commands can be taught and will help to correct many misbehaviors that your pet exhibits.

Definition of the product:



INVIROX Operating Guide

• How to turn the remote on/off

1. Press and Hold the channel button (has the 1/2 print) for 2 seconds to power on the Remote Transmitter. The backlight will be on.

2. Backlight will be off at 15 seconds if there is no operation.

3. LCD display will be turned off at 2 minutes if there is no operation. Any press on the button of the Remote Transmitter will activate the Remote Transmitter.

To turn the remote transmitter off: Press and Hold the channel button (1/2 print) for 2 seconds to power off the Remote Transmitter.

• How to turn the Receiver Collar on/off

To turn the Ultra K9 Receiver Collar on: Press and Hold the power button for 2 seconds, the Receiver Collar will vibrate and indicator will start to blink in green.

To turn the Ultra K9 Receiver Collar off: Press and Hold the power button for 2 seconds, the Receiver Collar will beep and GREEN LED indicator turns off.

Note: To extend product battery life; Turn off the receiver collar & Remote when not in use.

How the INVIROX transmitter works

1.Press  once to send a vibration, shock and warning tone command to Receiver Collar.

2.Press and Hold  ,Receiver Collar will have a consecutive warning tone / shock / vibration and stop after 10 seconds.

Note: Do not press and hold for long time to avoid physical or psychological hurt to your dog. Press the any of the training buttons- then adjust the level by pressing the Up & Down Button.

Note: You can also press  button select the stimulation you want, then adjust the levels by pressing the Up & Down Button.

• How To Solve Dogs Digging?
• How Do I Stop Dog Barking?
• How Do You Stop Dog Aggression?
• 11 Things To Consider Before Buying A Shock Collar
• INVIROX Methodology - Test Yourself!

How to fit the INVIROX training collar

• Proper fit of the training collar & placement on your dog's neck is vital for an efficient dog training sessions.

The contact point must have direct contact with your dog's skin on the underside of his neck. To ensure a proper fit, please follow these steps.

1. Place the receiver collar on your dog's neck. Centre the contact points underneath your dog's neck, Touching the skin.

2. The receiver collar should fit snugly yet loose enough to allow one finger to fit between the strap and your pet's neck.

3. There are longer metal contact points provided to you in the INVIROX training kit- In case your dog has long fur, in some cases you will need to trim your dog's fur in the contact area; To ensure consistent contact with skin. Do not shave(!) the dog's neck as this may increase the risk of skin irritation.

Note: Generally, we advise the usage of beep & vibration for daily routine, shock mode can be left for extreme situations.



How to find the best suited level of each training mode?

The INVIROX training remote has 99 stimulation levels of static shock & 16 levels of vibration. Always start at the lowest levels and work your way up.

You can also feel the stimulation on your wrist to have better understanding of which level is best suited for your dog in each training mode.

This step called; "The Recognition Level"

A slight change in your dogs behavior- Such as sharp move 'looking around' or scratching the collar or flicking ears indicates the recognition level which is best suited for your dog.

Follow these steps to find your dog's Recognition Level:

1. Start at lowest level (1,2,3) Press the shock / vibration button continuously for 1-2 sec'. Note: The training buttons deliver stimulation for exact 10 sec'. If needed further stimulation, Re-press the desired button.

2. If there is no reaction on specific level; Repeat the stimulation level several times before moving up to next level.

3. In no case your dog should panic or yelp when receiving a stimulation! If such thing happen- You are way above the recognition level and you must go to lower setting.

4. Going up the levels must be done gradually, Your dogs reaction must be just as someone else will tickle you in the neck. Correcting your dog's behavior must be gentle but strong enough to turn his attention to you. Even while off-leash!

5. If you see no reaction from your dog while using the e collar on higher level; You will want to double check the placement and fitting on the dog's neck, If your dog has a long fur - Use the longer contact points. Then go over the Recognition level process again.

6. The warning tone training mode: There is 8 tones levels in the e collar in which can serve multiple training needs. Find the best suited tone level for each command can turn your training sessions with your dog to magical!

Note:

If your dog is not responding to none of the training modes- Please contact our customer service in email: Support@INVIROX.com

How to Maximize the INVIROX training remote Distance

Terrain, whether, vegetation, transmission from other radio devices, and other factors will affect the maximum range of the dog training transmitter.

To avoid as much as possible from the possibility of obstacles, hold the remote in a horizonal position away from your body to achieve optimum range. For maximum signal strength - Keep the device properly charged.





Charging the device:

The remote training collar use Lithium-Polymer batteries.

Do Not charge the device near any flammable substances. Fully charge the remote transmitter & receiver collar before use.

Charge the remote / training collar if:

• The indicator light is blinking rapidly.

• There is only 1 battery level on the remote LCD screen.

• The indicator light on the remote wont light-up when in use.

Charging steps:

1. Plug the adaptor into a standard wall outlet.

2. Lift the rubber cover on the receiver collar charging jack.

3. Connect the USB connectors to the charging jack on the receiver collar and remote transmitter.

4. Connect the USB cable port to the power charger, power bank or your PC.

Notes:

Remote Transmitter: Fully charged, the Green LED indicator will become solid. Receiver Collar: Fully charged, the Green LED indicator will become solid.

The charging time takes 2~3 hours, Green indicators on Remote Transmitter and that on Receiver Collar will blink slowly when charging.

How to Pair the Remote Transmitter & Receiver Collar

If your Receiver Collars does not beep when you press the Warning Tone Button on the Remote Transmitter, or you feel the Receiver Collar is not responding to the Remote Transmitter, follow these steps to pair.

1. Press and hold the power button on the receiver collar for 2 sec' to turn on the collar receiver.

2. Press the power button 3 times to enter the pairing mode. You will hear the beep and the indicator become solid. You will now have 10 sec to complete the pairing of both devices.

3. Press  on the Remote Transmitter to complete the pairing. Then Receiver Collar will respond to your operations on the Remote.

Tips: You can choose channel 1 or channel 2 to pair the Remote Transmitter & Receiver Collar. The system can pair 2 Receiver Collars at the same time. If you can not pair the device successfully, it maybe caused by the signal interference. Please change to another place to try or contact with our service center.

Notes: The Remote Transmitter and Receiver Collar will only work on the channel you have paired. For example, if you have paired Remote Transmitter to Receiver Collar on Channel 1, Remote Transmitter can control Receiver Collar only on Channel 1,and it will not work on Channel 2.

The system can pair 2 receiver collars in 2 different channels at the same time. If you bought the dual receiver collar version - You can go over the previous step of pairing mode for the 2nd collar on 2nd channel by pressing the channel button (1/2).

Read About INVIROX Methodology >>

How To Use A Dog Shock Collar >>

How to test the Functions:

Warning Tone Test

 Press the  button to test the warning tone function. The receiver collar will beep along with solid green indicator on the receiver collar indicating that the warning tone function works.

Vibration Test

Press the  Button to test the Vibration function -The Receiver Collar will vibrate along with solid green indicator on the Receiver Collar indicating that the Vibration function works.

Shock Portion Test (Shown on the older version but just the same for the newer model):

Secure the Test Bulb on the Receiver Collars' Contact Points -Press the  Button to test the shock function -The Test Bulb will light up along with solid green indicator on the Receiver Collar indicating the static shock stimulation works, Test Bulb become brighter at higher shock levels.



Notes: For your dog’s comfort and safety, please ensure the conductive silicone covers are worn on the contact points before putting the Receiver Collar on your dog. The conductive silicone covers can deliver the static shock.

General Training Tips

1. Eliminate one misbehavior or teach one obedience command at a time. If you move too fast with training, your pet may become confused.

2. Be consistent. Correct your pet every time he misbehaves.

3. Unless you can supervise him, it is recommended that you restrict your pet from situations in which he has a history of misbehaving. However, setting up a situation as a training session can dramatically improve your chances of success.

4. If your pet reacts to the beeps by hiding or acting fearful, redirect his attention to a simple and appropriate behavior, such as the "sit" command.

5. Pets should be at least 6 months old before using the Trainer.

6. Only let responsible family members use the Trainer. It is not a toy!

7. Other pets in hearing range will be affected by the training beeps. Therefore, training sessions should be conducted out of hearing range of other pets.

CAUTION:
Never use the Remote Trainer to correct or eliminate any form of aggressive behavior. We recommend you contact your local veterinarian or professional trainer to determine if your pet might be aggressive. See page 1 for more information.

Teaching Basic Obedience:

The "Sit" Command

1. Put a separate, non-metallic collar on your pet's neck ABOVE the Receiver Collar, and attach a 10-foot leash. Note: Be sure the extra collar does not put pressure on the Contact Points.

2. Hold the leash and the Remote Transmitter in one hand. Keep your other hand free to guide your pet into a "Sit" position.

3. Press and hold the Stimulation Button, starting at your pet's Recognition Level.

4. Immediately give the “Sit” command while continuing to hold the Stimulation Button.

5. Release the Stimulation Button as soon as your pet is in position, and praise him.

6. Release your pet from the “Sit” command and play.

7. Repeat Steps 2 through 6.

The "Come" Command

1. Put a separate, non-metallic collar on your pet's neck ABOVE the Receiver Collar, and attach a 10-foot leash. Note: Be sure the extra collar does not put pressure on the Contact Points.

2. Hold your leash in one hand and the Remote Transmitter in the other.

3. Wait for your pet to walk away from you. Using the Recognition Level for your pet, press and hold the Stimulation Button on your Remote Transmitter.

4. Immediately give the command "Come" while continuing to hold the Stimulation Button.

5. Using the leash, gently guide your pet toward you until he begins to come in your direction.

6. Immediately release the Stimulation Button as soon as your pet steps towards you, and praise him enthusiastically.

7. Quickly move backwards as your pet begins to come back to you, praising him the entire time.

8. Praise your pet when he returns to you.

9. Repeat Steps 3 through 8.

10. Once your pet responds readily to the "Come" command several times, back away from him without giving a command. When your pet turns toward you, give the command "Come" (WITHOUT STIMULATION) and praise him while you continue to back up. Praise your pet when he returns to you.

11. Use your leash to prevent your pet from running past you. If your pet manages to un past you, repeat Steps 3 through 8.

The "Stay" Command

1. Put a separate, non-metallic collar on your pet's neck ABOVE the Receiver Collar, and attach a 10-foot leash. Note: Be sure the extra collar does not put pressure on the Contact Points.

2. Put your pet on his bed. Hold your leash in one hand and the Remote Transmitter in the other.

3. Staying within 3 feet, walk the perimeter of the bed. Do not say anything to your pet.

4. If your pet tries to leave the bed, press and hold the Stimulation Button and give the "Stay" command. Continue to hold the button until your pet is back on his bed. If necessary, use the leash to guide your pet onto his place.

5. Praise your pet when he is back on his bed.

6. Once your pet has settled for a few seconds, release him and play calmly.

7. Repeat steps 1 through 5.

Eliminating Unwanted Behavior

Jumping Up

Pets typically jump up to get attention. If you do not want your pet to jump on you, then friends or members of the family should not encourage this behavior. That means every time your pet jumps on someone, he should be reprimanded or redirected to an alternate and acceptable behavior, for which he can receive praise.

Note: It is best if your pet first understands the "Sit" command.

1. Choose your pet's Recognition Level.

2. As soon as your pet lifts his paws off the ground to jump on you, press the Stimulation Button and give the command "Sit."

3. Release the Stimulation Button immediately once your pet is sitting, and verbally praise him.

4. If your pet ignores the stimulation, increase the Intensity Level by 1.

5. Practice this exercise in several different areas and use different people for distractions.

Digging

It is important to first understand why your pet is digging. Many dogs, such as terriers, were bred to flush out prey, and digging is very innate to them. Other dogs may be digging to find a cool spot to lie down, or simply out of boredom. Your pet may no longer have the desire to dig if he is provided with the following:

• A cool, shaded area in which to lie down, and plenty of water.

• An alternate activity, such as a favorite toy.

• Plenty of play, exercise, and attention.

• A yard free from rodents or prey that he may be trying to flush out.

1. Choose the Intensity Level 1 higher than your pet's Recognition Level.

2. Place the Receiver Collar on your pet and wait at least 10 minutes before placing him in the yard. No other people or pets should be in the yard, as you do not want your pet to associate the stimulation with anything other than his digging. Your pet must be securely fenced in or contained during training.

3. From a window or area where your pet cannot see you, wait until your pet begins to dig.

4. While your pet digs, press the Stimulation Button and release it when he stops digging. Only press the button while your pet is in the act of digging, and do not say anything to him.

5. If your pet ignores the stimulation, increase the Intensity Level by 1

6. Continue to watch your pet, as he may choose another area to dig.

7. Do not allow your pet in the yard unsupervised until he has completely stopped digging.

Chasing

Chasing is an instinctive behavior stimulated by moving objects. Some dogs have a particularly strong desire to chase that can put them in harm's way and leave you helpless. Never allow your dog off the leash or out of a contained area until he has learned the "Come" command, regardless of the distraction. Be consistent and correct your dog every time he chases something.

CAUTION:
It is vitally important that you and your dog remain safe while learning during on-leash training. Your dog should be on a strong leash, long enough for him to attempt to chase an object, but short enough for him not to reach a road or other unsafe area. You must also be physically strong enough to restrain your dog when he tries to chase.

1. If your dog has not learned the "Come" command, keep a leash on him so you can physically stop him before he reaches the object he is chasing.

2. Choose the Intensity Level 1 higher than your dog's Recognition Level.

3. Set up a scenario where your dog is enticed to chase an object. Common items could be cars, motorcycles, bicycles, etc. (do not use toys).

4. When the object passes in front of your dog, make sure to hold the leash with a firm grip. As soon as your dog begins to chase the object, press and hold the Stimulation Button until he stops.

5. When your dog stops chasing the object, immediately release the button, walk backwards and give the command "Come." Praise your dog as he comes to you.

6. Repeat the process until your dog stops chasing the object.

Trash Raiding

The easiest way to prevent trash raiding is to remove garbage and tempting food from your pet's environment. You can use the Training Collar to teach your pet to stay away from these items; however, you must be prepared to correct your pet every time he approaches them.

1. Choose the Intensity Level 1 higher than your pet's Recognition Level.

2. Pick a temptation for your pet and position yourself where he cannot see you.

3. While your pet's mouth is touching the temptation, press and hold the Stimulation Button. Immediately release the button when your pet leaves the temptation.

4. Do not say anything, as you want your pet to associate the stimulation with his behavior, not you.

5. If your pet does not respond to the stimulation, increase the Intensity Level by 1 and repeat the process.

6. Repeat this process in several different locations with different temptations.
